outline
With the development of electronic products to miniaturization and thinness, the requirements for internal components are getting higher and higher. In order to realize miniaturization, high working frequency, cost-effectiveness and good heat dissipation performance, Xiangru Electronics has introduced the patch CD unshielded inductor XRCD43-102K, which has excellent inductance performance, compact size and reliable manufacturing process, and meets the requirements of modern electronic equipment for miniaturization, high efficiency and stable performance. 1mH inductance, with a size of only 3.5*4mm, is widely used in general electronic equipment such as AV equipment, OA equipment, household appliances and information services.
Product features
Unshielded inductance design ensures stable inductance characteristics in various environments.

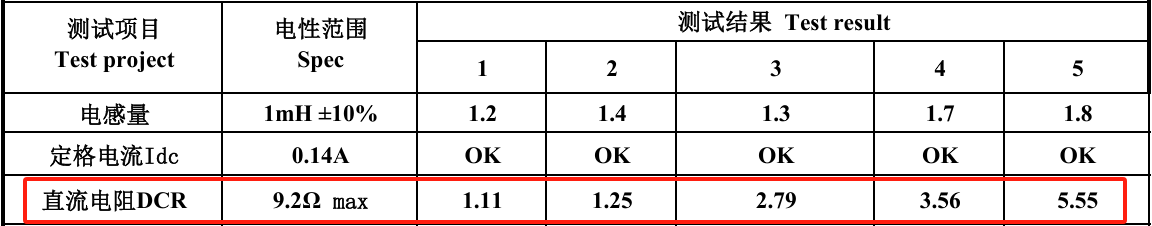

The key parameters such as inductance (1mh 10%) and DC resistance (DCR)(9.2Ω max) are highly consistent.
Miniaturization design is convenient to realize efficient layout of electronic components.
Chip design, easy automatic assembly, improve production efficiency.
app; application
AV equipment: audio equipment, TV sets, monitors, etc.
OA equipment: printers, copiers, fax machines, etc.
Household appliances: washing machines, air conditioners, refrigerators, etc.
Information equipment: computers, mobile phones, routers, etc.

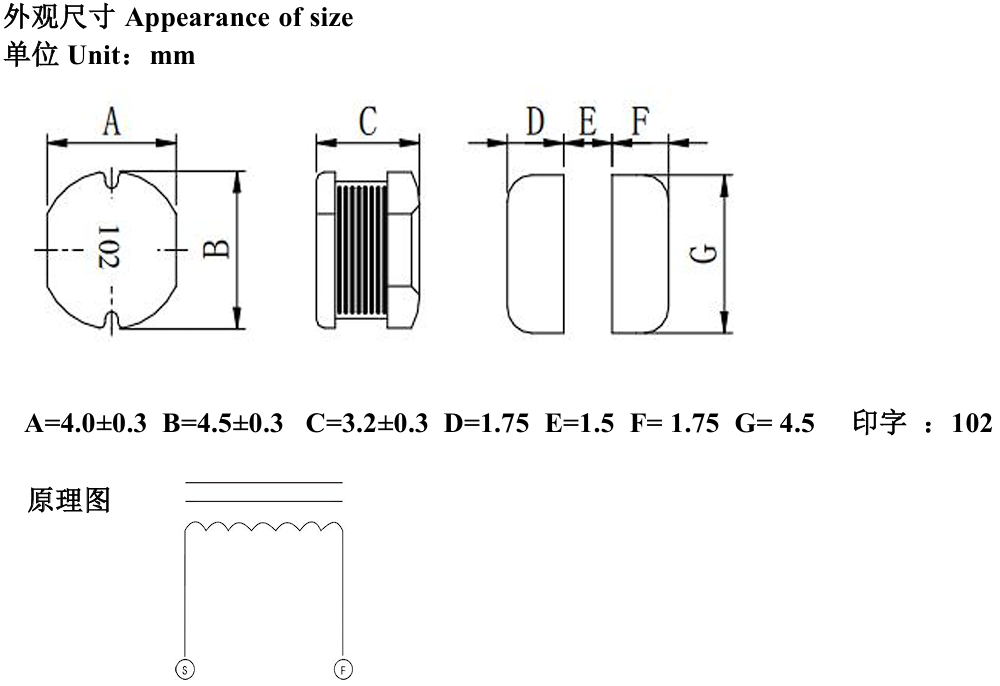

Appearance and size

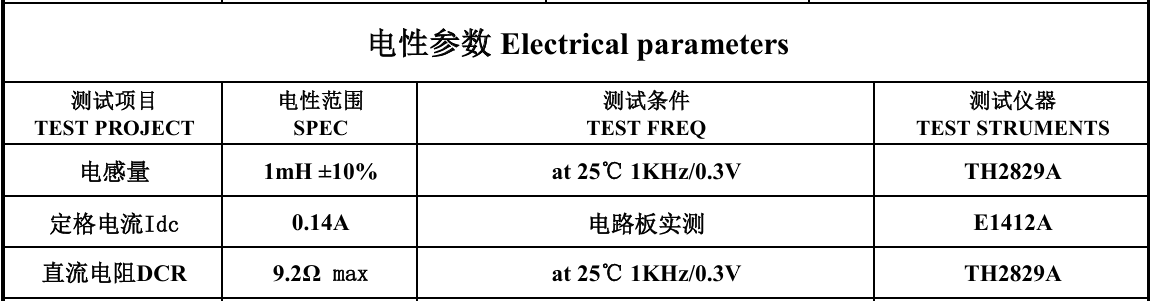

Electrical parameters
Product advantage
1. Miniaturization design
Accurate appearance size, suitable for patch installation, saving space, and suitable for the miniaturization trend of modern electronic equipment.
2. Accurate inductance value

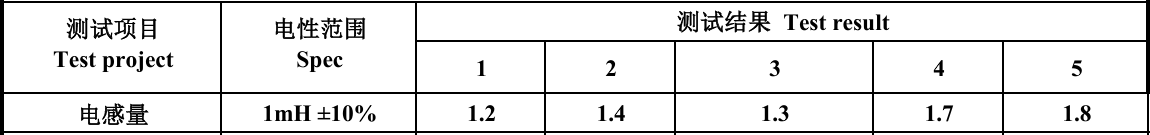

The inductance is 1mH, and the tolerance is controlled within 10%, which ensures the consistency and reliability of the product and is very important for circuit applications that need accurate inductance.
4. Perfect technical support
produce
Mass production
Sales engineer
(0769)86346548
